IKON: MEETING & BOARDROOM CHAIRS

Clear-cut lines and inspirational shape, IKON offers style and enhancement to any guest or visitor environment.


Whilst inspirational, IKON is practical and provides comfort and ergonomics to the user.

RESOURCES →

The range

Stacking frame
Stacking frame with arms
Stackable chair
Stackable chair with arms
Stackable chair
Stackable chair with arms
High stool
High stool
High stool
Stackable cantilever chair
Stackable cantilever chair with arms
Cantilever frame with arms
Stackable cantilever chair with arms
Stackable cantilever chair
Stackable cantilever chair with arms
Swivel chair
Swivel chair with arms
Swivel chair with arms

Features

STANDARDS

BS EN 1335-1: 2000

BS 5259-2: 2000 & A2 2008

BS EN ISO 9241-5:1999

BS EN 13761: 2000


SEAT & BACK: PLASTIC
Polypropylene


SEAT & BACK: UPHOLSTERED
Polypropylene with upholstered pad
Combustion Modified High Resilience (CMHR) foam


SWIVEL MECHANISM
Height adjustable seat


BASE & CASTORS
Five star glass filled nylon base (67 cm diameter)

6 cm twin wheel polyamide castors, load capacity 50 kgs per castor (total 250 kgs)


GAS LIFT

Black outer support cylinder with 12 cm of adjustment

Suitable for users up to 150 kgs

OPTIONS

PLASTIC COLOURS
Black
White
Grey
Sand


BASE & FRAME FINISHES
Polished aluminium base (inc chrome frame)
Silver painted base & frame (RAL9006)


CASTOR & GLIDES
Glides
Soft wheel castors
Brake loaded or un-loaded castors


MISC OPTIONS
Two tone upholstery

ENVIRONMENTAL

CO2 DATA

The organisational Green House Gas intensity for an item in this range, based on average product weight and total Green House Gas Emissions recorded within the 1st June 2022 to 31st May 2023 company inventory, is 0.0072 tonnes CO2e/item. (QC: Blue Marble Environmental Partnerships Ltd)


RECYCLED CONTENT
40% (estimated)


RECYCLABLE CONTENT
98%

Plastic components >25 g are labelled in accordance with ISO 11469.


POLICY

Pledge Chairs prefer where possible to manufacture a complete product from raw materials, constructing wooden components and panels, steel fabricated frames, and upholstered products at our site in Leighton Buzzard, Bedfordshire, UK.


We are committed to the efficient use of energy and continually review our environmental impact, seeking to utilise technologies which minimise energy and material consumption in our products and services.

RESOURCES

Click to download images, CAD blocks, literature or certification documents.

Please get in touch if you would like any more information on this, or any other Pledge range.

PRODUCT TECHNICAL DATA

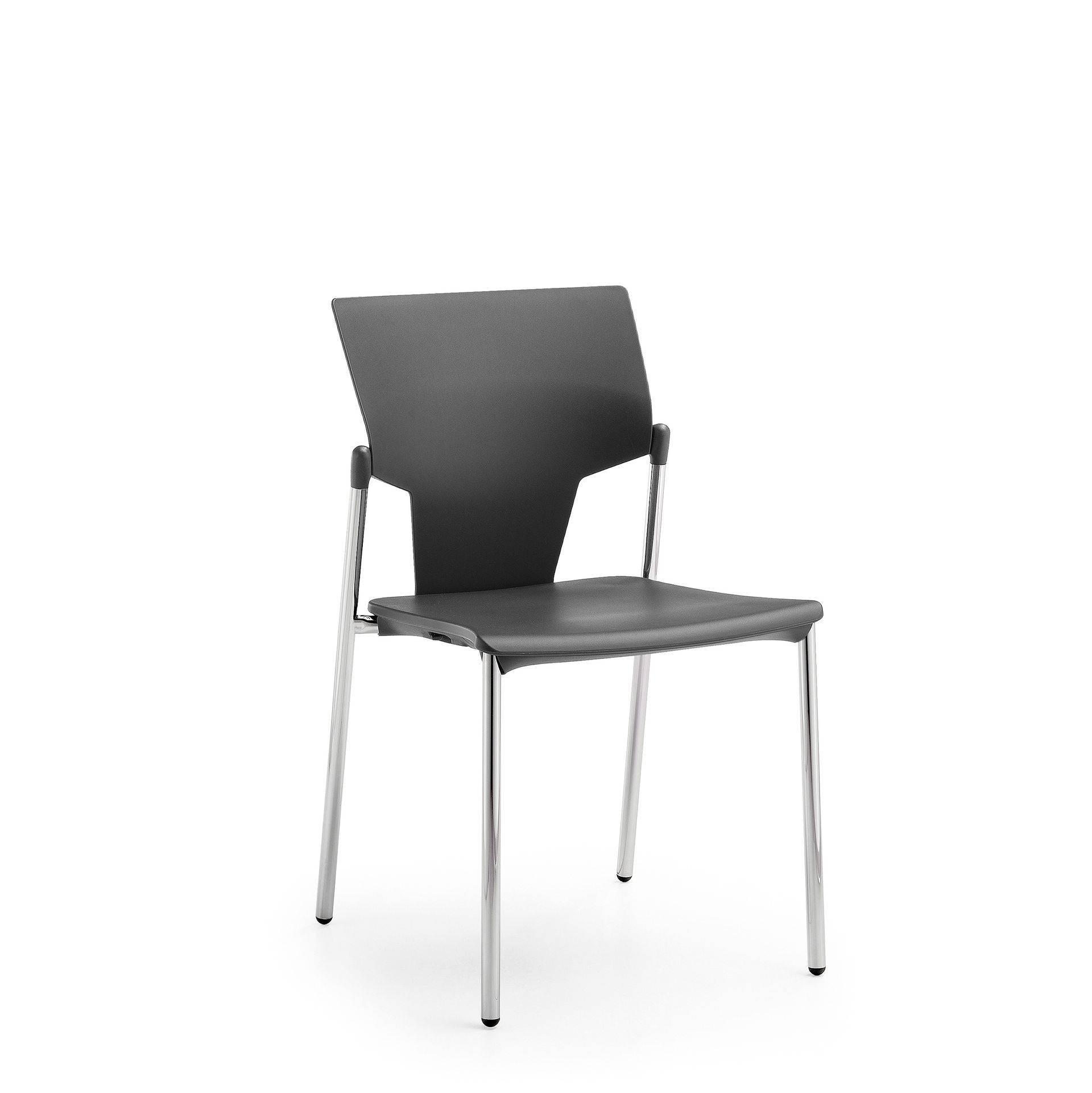

IK01B

Stackable chair

No arms
Stacking four leg frame
Plastic seat & back
Black, silver or chrome frame

DIMENSIONS mm
Seat Height 440
Overall Depth 530
Overall Width 460
Overall Height 800
Back Width 430
WEIGHT 5 kg
RESOURCES →

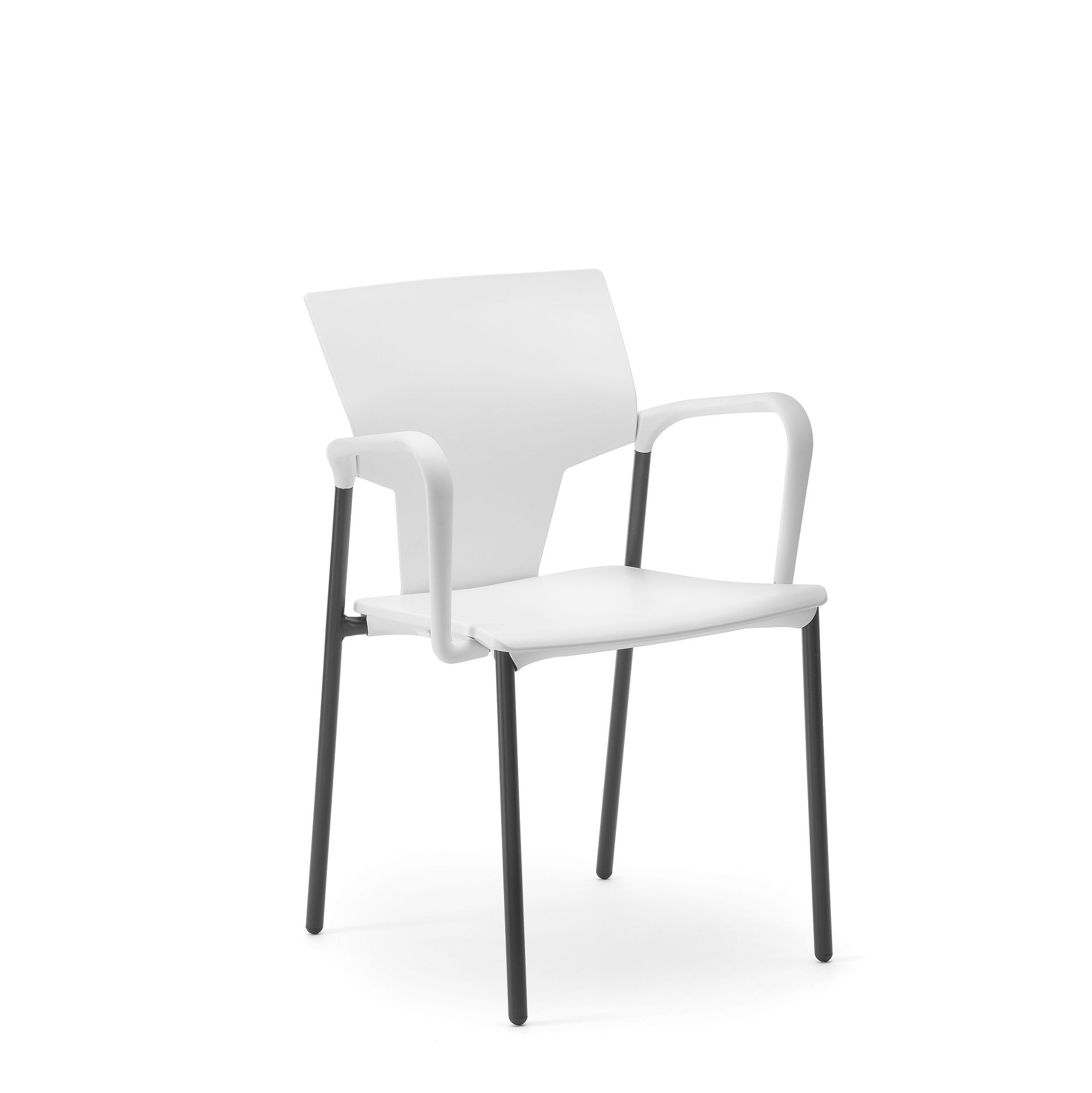

IK02B

Stackable chair with arms

Fixed arms
Stacking four leg frame
Plastic seat & back
Black, silver or chrome frame

DIMENSIONS mm
Seat Height 440
Overall Depth 530
Overall Width 540
Overall Height 800
Back Width 430
Arm Height 680
WEIGHT 6 kg
RESOURCES →

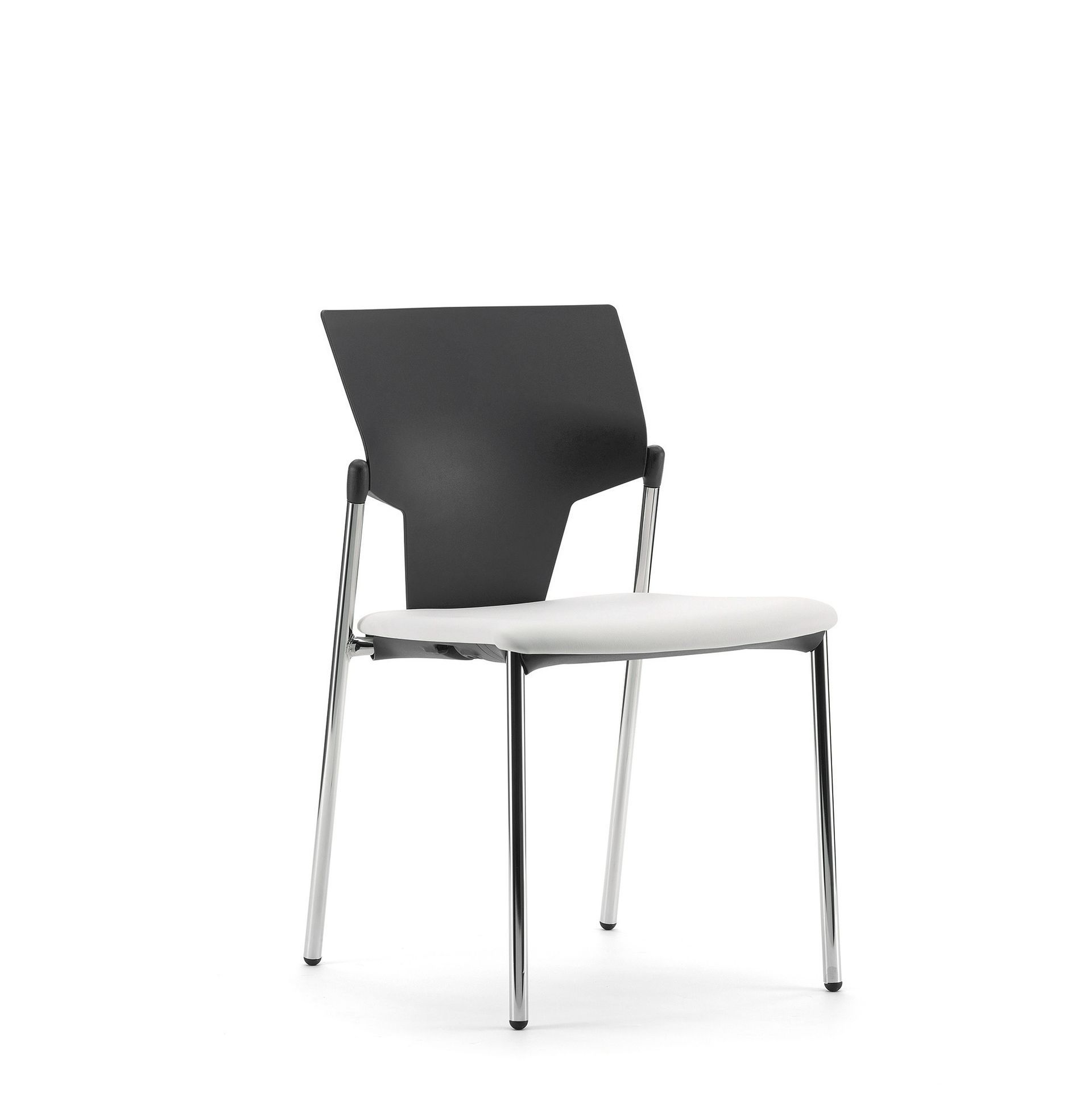

IK03B

Stackable chair

No arms
Stacking four leg frame
Plastic back

Upholstered seat

CMHR foam
Black, silver or chrome frame

DIMENSIONS mm
Seat Height 440
Overall Depth 530
Overall Width 460
Overall Height 800
Back Width 430
WEIGHT 5.5 kg
RESOURCES →

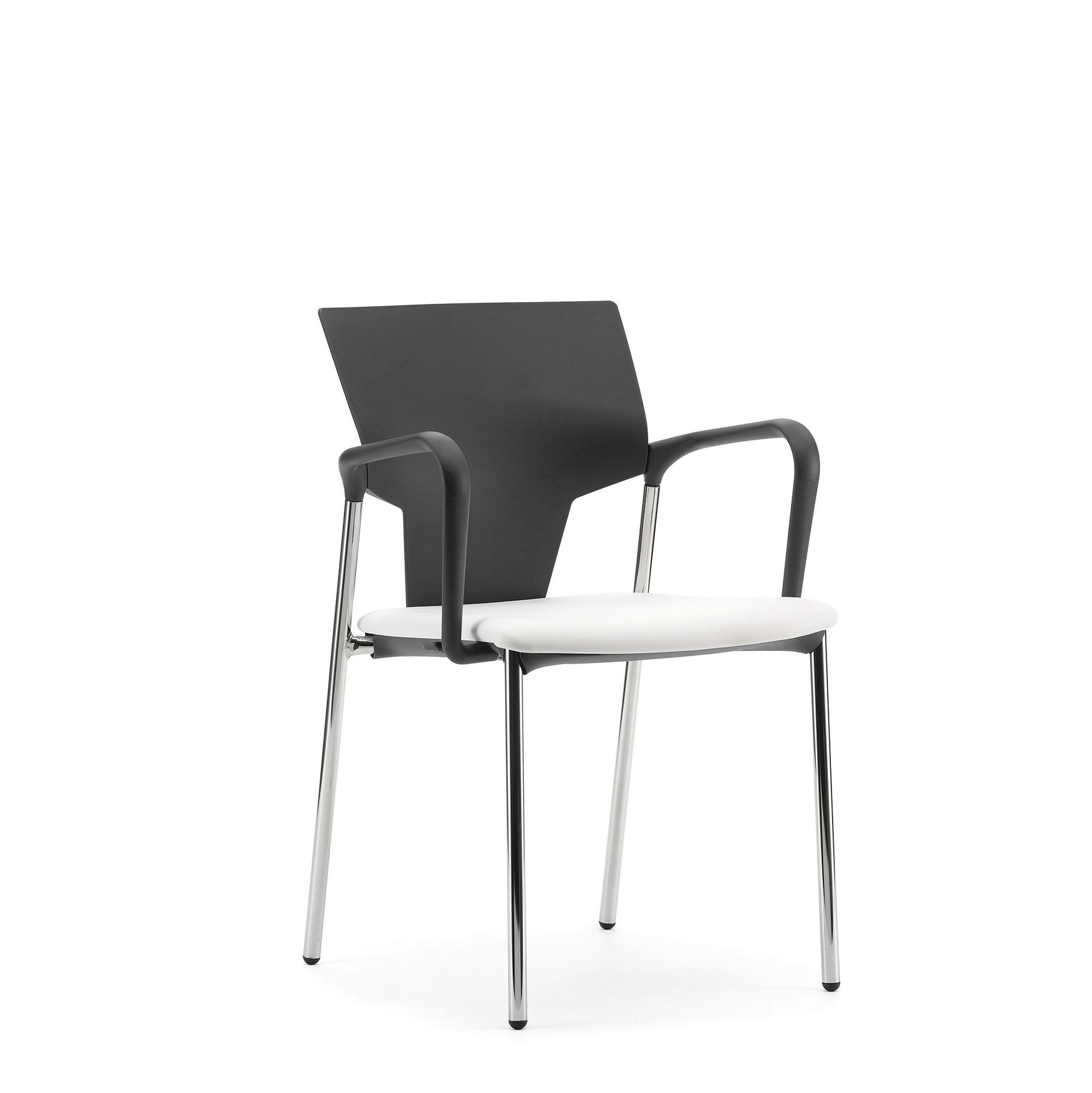

IK04B

Stackable chair with arms

Fixed arms
Stacking four leg frame
Plastic back

Upholstered seat

CMHR foam
Black, silver or chrome frame

DIMENSIONS mm
Seat Height 440
Overall Depth 530
Overall Width 540
Overall Height 800
Back Width 430
Arm Height 680
WEIGHT 6.2 kg
RESOURCES →

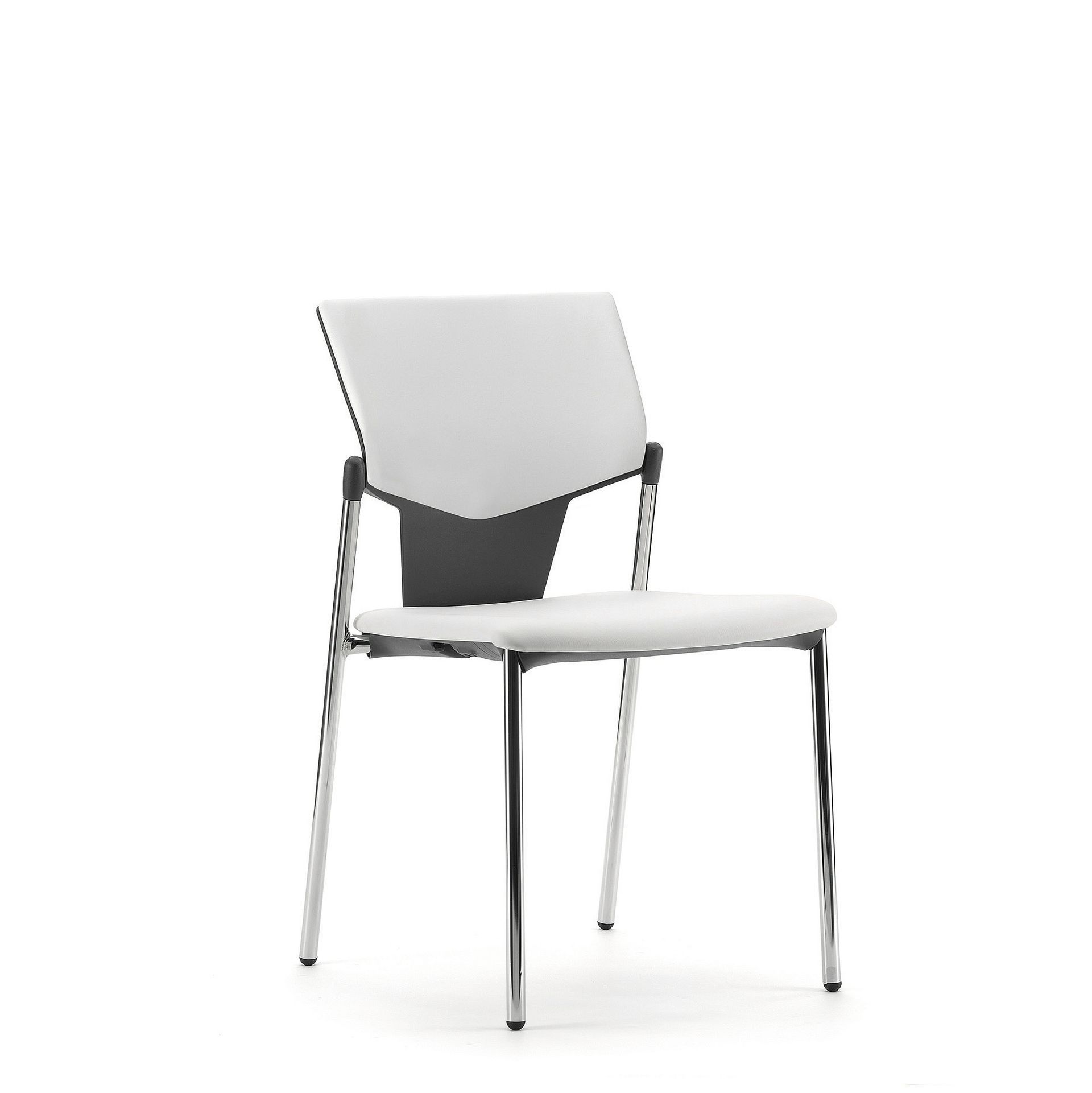

IK05B

Stackable chair

No arms
Stacking four leg frame
Upholstered seat & back

CMHR foam
Black, silver or chrome frame

DIMENSIONS mm
Seat Height 440
Overall Depth 530
Overall Width 460
Overall Height 820
Back Width 430
WEIGHT 5.7 kg
RESOURCES →

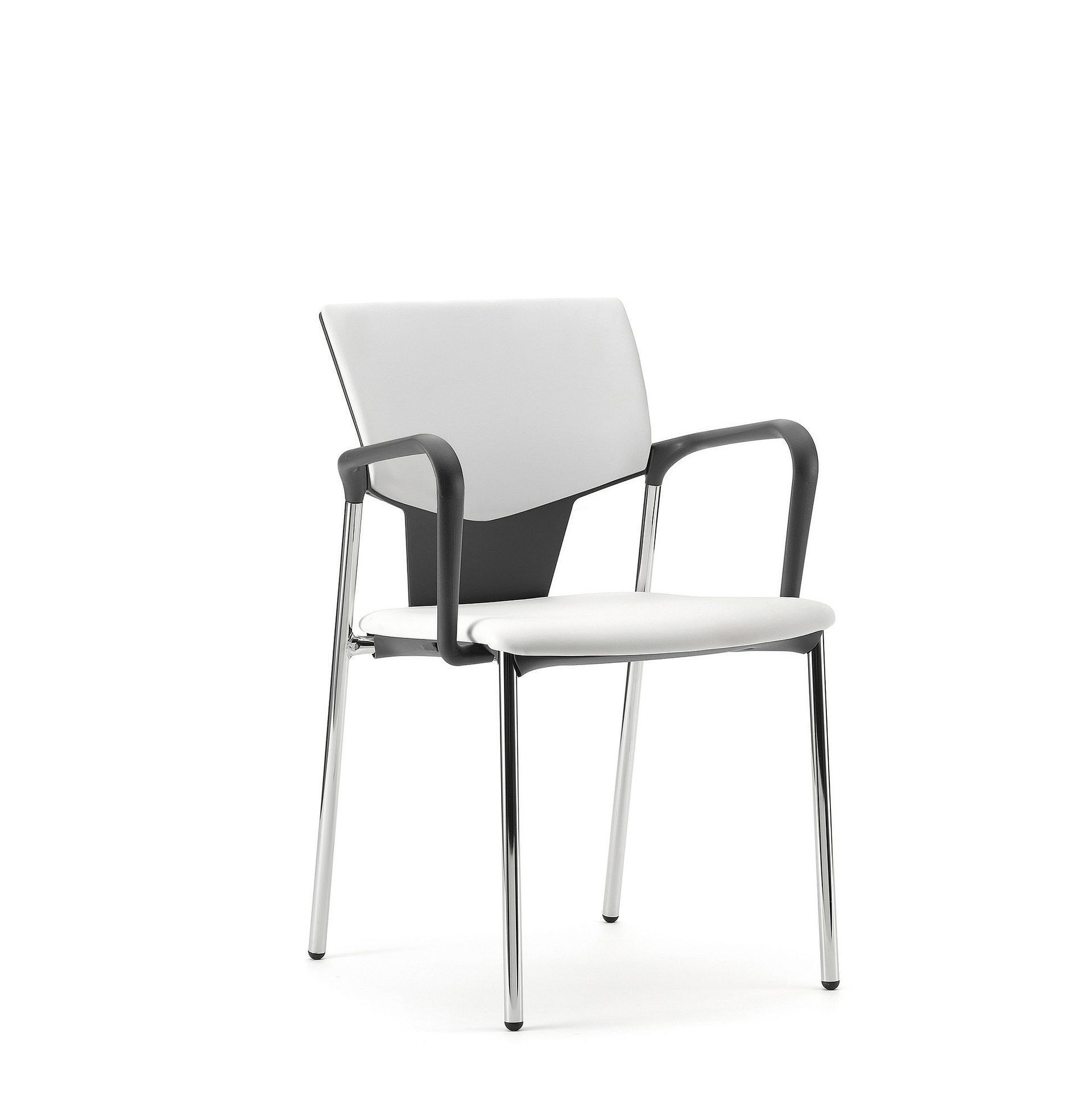

IK06B

Stackable chair with arms

Fixed arms
Stacking four leg frame
Upholstered seat & back

CMHR foam
Black, silver or chrome frame

DIMENSIONS mm
Seat Height 440
Overall Depth 530
Overall Width 540
Overall Height 820
Back Width 430
Arm Height 680
WEIGHT 6.5 kg
RESOURCES →

IK51B

High stool

No arms

Plastic seat & back

Black, silver or chrome frame

DIMENSIONS mm
Seat Height 770
Overall Depth 530
Overall Width 460
Overall Height 1120
Back Width 430
WEIGHT 6.6 kg
RESOURCES →

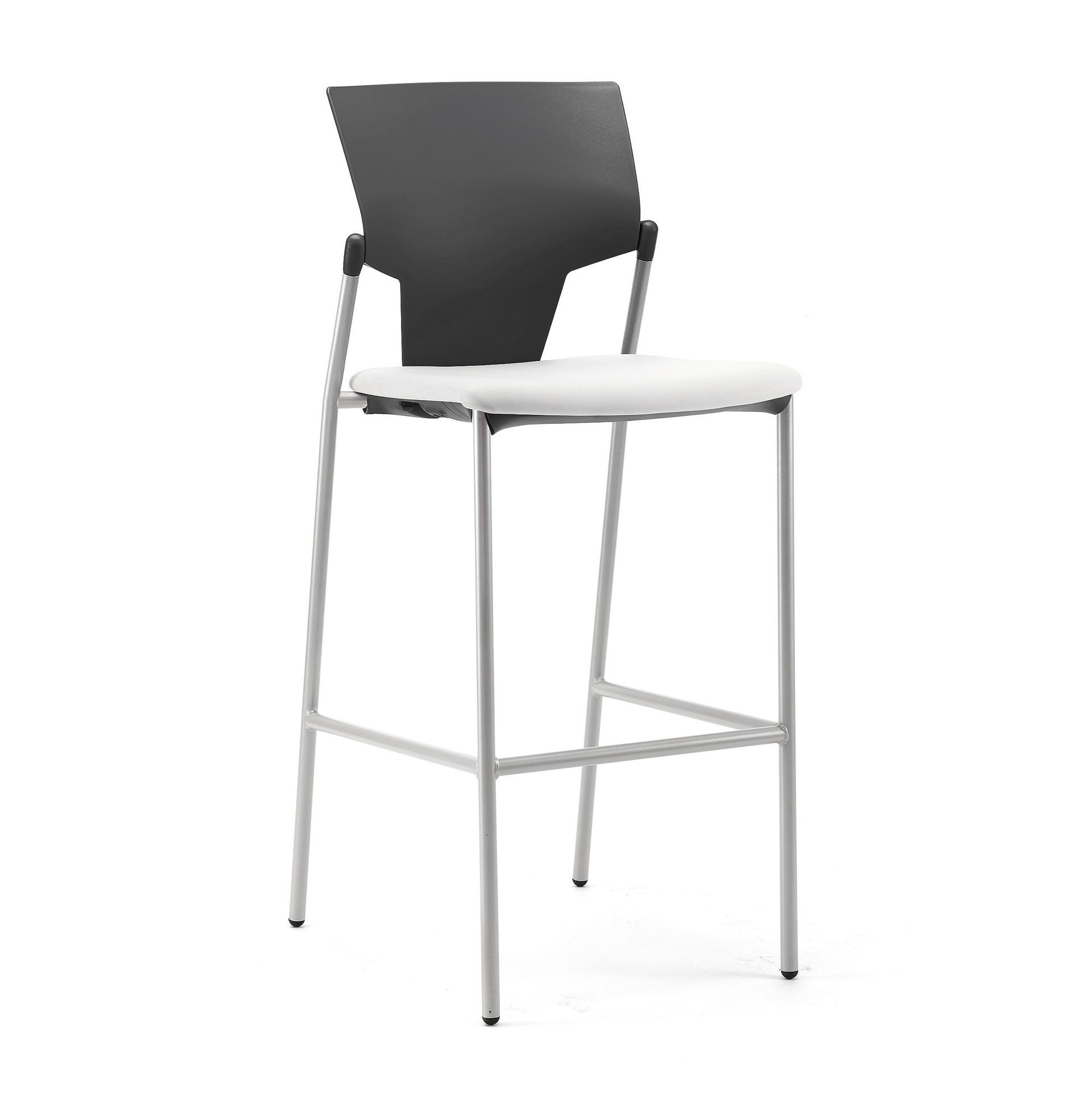

IK53B

High stool

No arms

Plastic back

Upholstered seat

CMHR foam

Black, silver or chrome frame

DIMENSIONS mm
Seat Height 770
Overall Depth 530
Overall Width 460
Overall Height 1140
Back Width 430
WEIGHT 7.3 kg
RESOURCES →

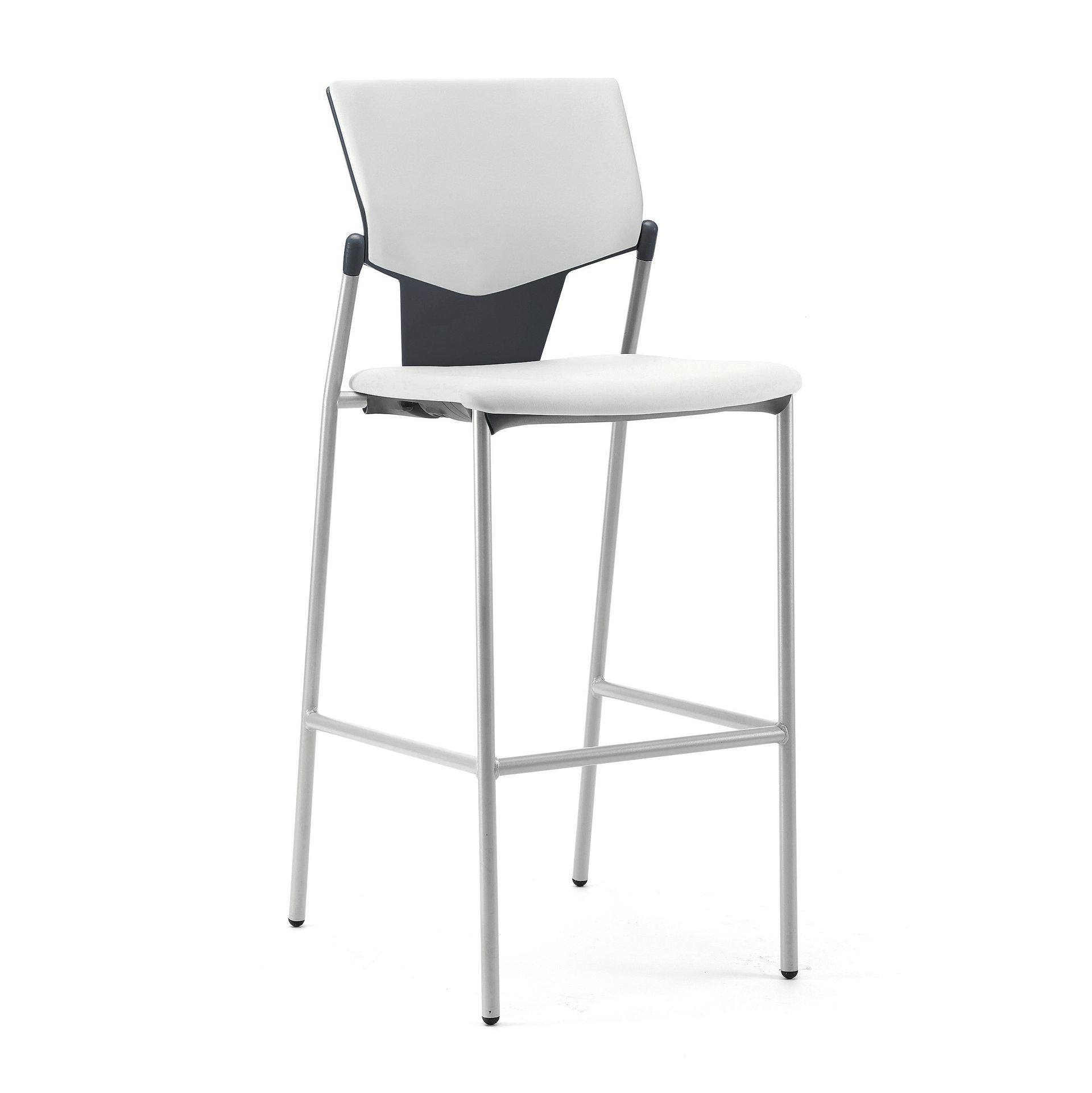

IK55B

High stool

No arms

Upholstered seat & back

CMHR foam

Black, silver or chrome frame

DIMENSIONS mm
Seat Height 770
Overall Depth 530
Overall Width 460
Overall Height 1140
Back Width 430
WEIGHT 8 kg
RESOURCES →

IK21B

Stackable cantilever chair

No arms
Stacking cantilever frame

Plastic seat & back
Black, silver or chrome frame

Stackable up to 3 high

DIMENSIONS mm
Seat Height 440
Overall Depth 520
Overall Width 460
Overall Height 820
Back Width 430
WEIGHT 5.5 kg
RESOURCES →

IK22B

Stackable cantilever chair with arms

Fixed arms
Stacking cantilever frame

Plastic seat & back
Black, silver or chrome frame

Stackable up to 3 high

DIMENSIONS mm
Seat Height 440
Overall Depth 530
Overall Width 540
Overall Height 820
Back Width 430
Arm Height 680
WEIGHT 7.9 kg
RESOURCES →

IK23B

Stackable cantilever chair

No arms
Stacking cantilever frame

Plastic back

Upholstered seat

CMHR foam
Black, silver or chrome frame

Stackable up to 3 high

DIMENSIONS mm
Seat Height 440
Overall Depth 520
Overall Width 460
Overall Height 820
Back Width 430
WEIGHT 6 kg
RESOURCES →

IK24B

Stackable cantilever chair with arms

Fixed arms
Stacking cantilever frame

Plastic back

Upholstered seat

CMHR foam
Black, silver or chrome frame

Stackable up to 3 high

DIMENSIONS mm
Seat Height 440
Overall Depth 530
Overall Width 540
Overall Height 820
Back Width 430
Arm Height 680
WEIGHT 8.1 kg
RESOURCES →

IK25B

Stackable cantilever chair

No arms
Stacking cantilever frame

Upholstered seat & back

CMHR foam
Black, silver or chrome frame

Stackable up to 3 high

DIMENSIONS mm
Seat Height 440
Overall Depth 520
Overall Width 460
Overall Height 840
Back Width 430
WEIGHT 6.5 kg
RESOURCES →

IK26B

Stackable cantilever chair with arms

Fixed arms
Stacking cantilever frame

Upholstered seat & back

CMHR foam
Black, silver or chrome frame

Stackable up to 3 high

DIMENSIONS mm
Seat Height 440
Overall Depth 530
Overall Width 540
Overall Height 840
Back Width 430
Arm Height 680
WEIGHT 8.3 kg
RESOURCES →

IK11B

Swivel chair

No arms
Swivel mechanism
Plastic seat & back
Seat height adjustment
Black, silver or polished base
6 cm twin wheel castors

DIMENSIONS mm
Seat Height 390
Overall Depth 410 - 520
Overall Width 460
Overall Height 530
Back Width 430
WEIGHT 8 kg
RESOURCES →

IK12B

Swivel chair with arms

Fixed arms
Swivel mechanism
Plastic seat & back
Seat height adjustment
Black, silver or polished base
6 cm twin wheel castors

DIMENSIONS mm
Seat Height 390
Overall Depth 410 - 520
Overall Width 550
Overall Height 530
Back Width 430
Arm Height 430
WEIGHT 9.9 kg
RESOURCES →

IK13B

Swivel chair with arms

No arms
Swivel mechanism
Plastic back

Upholstered seat

CMHR foam
Seat height adjustment
Black, silver or polished base
6 cm twin wheel castors

DIMENSIONS mm
Seat Height 390
Overall Depth 420 - 530
Overall Width 460
Overall Height 530
Back Width 430
WEIGHT 8.3 kg
RESOURCES →

IK14B

Swivel chair with arms

Fixed arms
Swivel mechanism
Plastic back

Upholstered seat

CMHR foam
Seat height adjustment
Black, silver or polished base
6 cm twin wheel castors

DIMENSIONS mm
Seat Height 390
Overall Depth 420 - 530
Overall Width 550
Overall Height 530
Back Width 430
Arm Height 430
WEIGHT 10.1 kg
RESOURCES →

IK15B

Swivel chair with arms

No arms
Swivel mechanism
Upholstered seat & back

CMHR foam
Seat height adjustment
Black, silver or polished base
6 cm twin wheel castors

DIMENSIONS mm
Seat Height 390
Overall Depth 420 - 530
Overall Width 460
Overall Height 530
Back Width 430
WEIGHT 8.5 kg
RESOURCES →

Ik16B

Swivel chair with arms

Fixed arms
Swivel mechanism
Upholstered seat & back

CMHR foam
Seat height adjustment
Black, silver or polished base
6 cm twin wheel castors

DIMENSIONS mm
Seat Height 390
Overall Depth 420 - 530
Overall Width 550
Overall Height 530
Back Width 430
Arm Height 430
WEIGHT 10.2 kg
RESOURCES →
