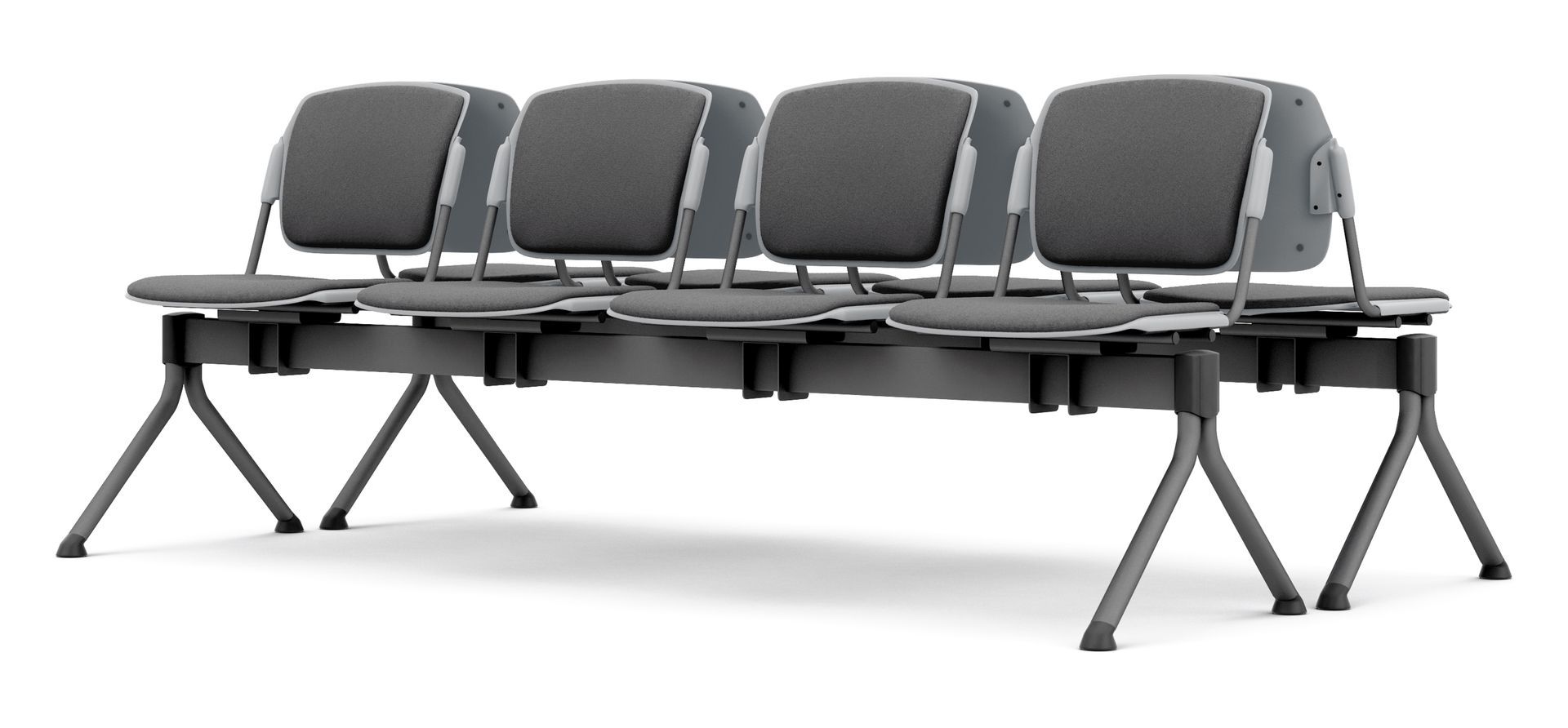

MIA BEAM:
BEAM SEATING
Designed with meeting and conference areas in mind, Mia is the perfect solution for high density seating applications, without losing versatility.
A beam seat option for waiting rooms makes Mia a truly versatile program.
The range
Features
BACK & SEAT: PLASTIC
Breathable polypropylene
UV-resistant 360 KLangley
BACK & SEAT: UPHOLSTERED
Polypropylene with upholstered pad
Combustion Modified High Resilience (CMHR) foam
ARMS
Chrome V arms
Polypropylene pads
BEAM
80 mm x 40 mm x 2 mm steel beam section
LEGS
Tubular shaped steel ‘V’ legs
Adjustable nylon feet
OPTIONS
LEG FINISHES
Silver legs (RAL9006)
Chrome legs
TABLES
Light oak laminated top
Black MFC top
ARMS
Polypropylene fixed arms
MISC OPTIONS & NOTES
Tip-up frame
Floor fixing (T-shaped legs)
ENVIRONMENTAL
CO2 DATA
The organisational Green House Gas intensity for an item in this range, based on average product weight and total Green House Gas Emissions recorded within the 1st June 2022 to 31st May 2023 company inventory, is 0.0054 tonnes CO2e/item. (QC: Blue Marble Environmental Partnerships Ltd)
RECYCLED CONTENT
40% (estimated)
RECYCLABLE CONTENT
98%
Plastic components >25 g are labelled in accordance with ISO 11469.
POLICY
Pledge Chairs prefer where possible to manufacture a complete product from raw materials, constructing wooden components and panels, steel fabricated frames, and upholstered products at our site in Leighton Buzzard, Bedfordshire, UK.
We are committed to the efficient use of energy and continually review our environmental impact, seeking to utilise technologies which minimise energy and material consumption in our products and services.
RESOURCES
Click to download images, CAD blocks, literature or certification documents.
Please get in touch if you would like any more information on this, or any other Pledge range.
PRODUCT TECHNICAL DATA

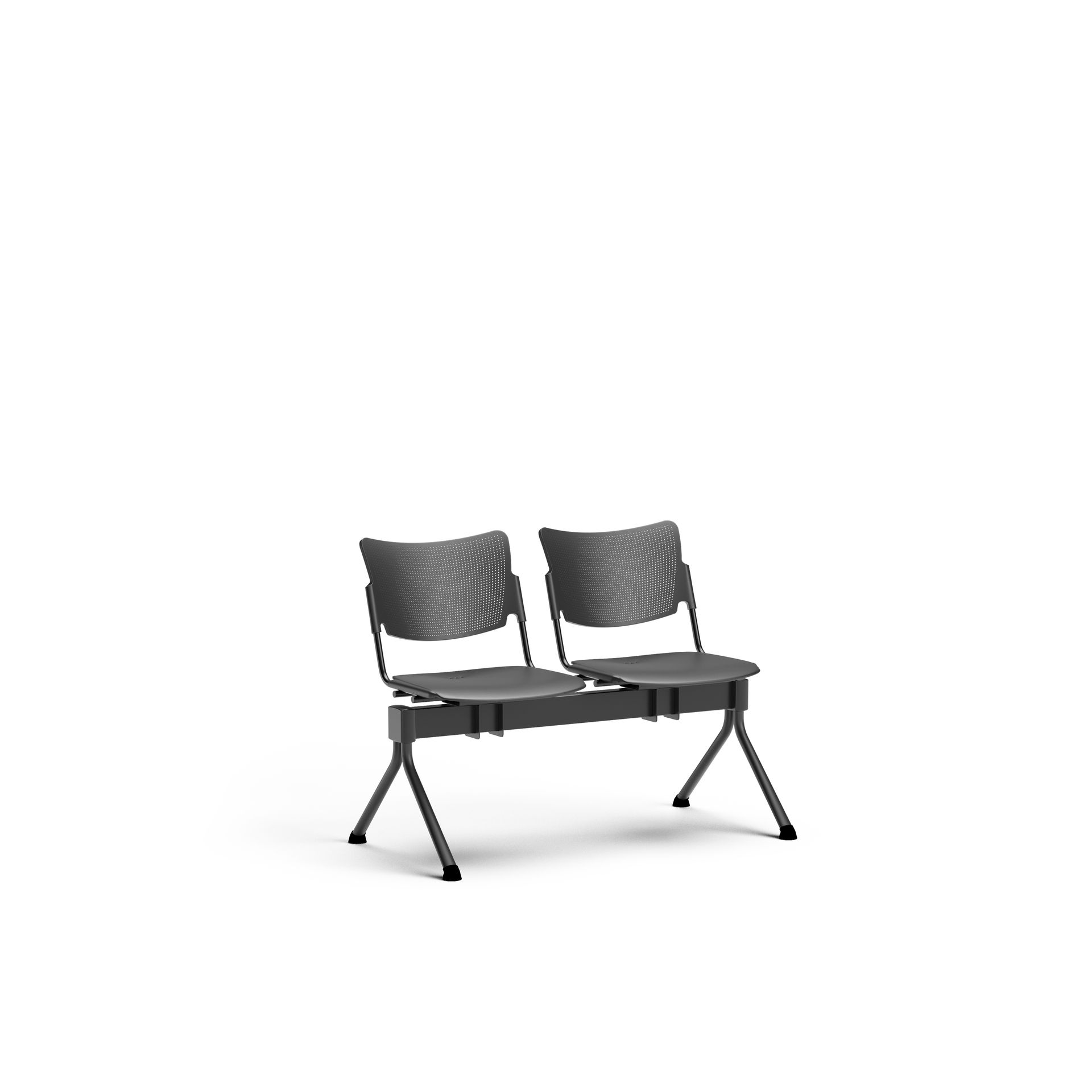

MA1CCB
Two seats
Breathable plastic back & plastic seat
Black tubular steel frame with silver or chrome legs
Optional arms, table and floor fixings available
| DIMENSIONS | mm |
|---|---|
| Seat Height | 460 |
| Overall Depth | 560 |
| Overall Width | 1100 |
| Overall Height | 810 |
| Back Width | 440 |
| WEIGHT | 15.3 kg |
|---|

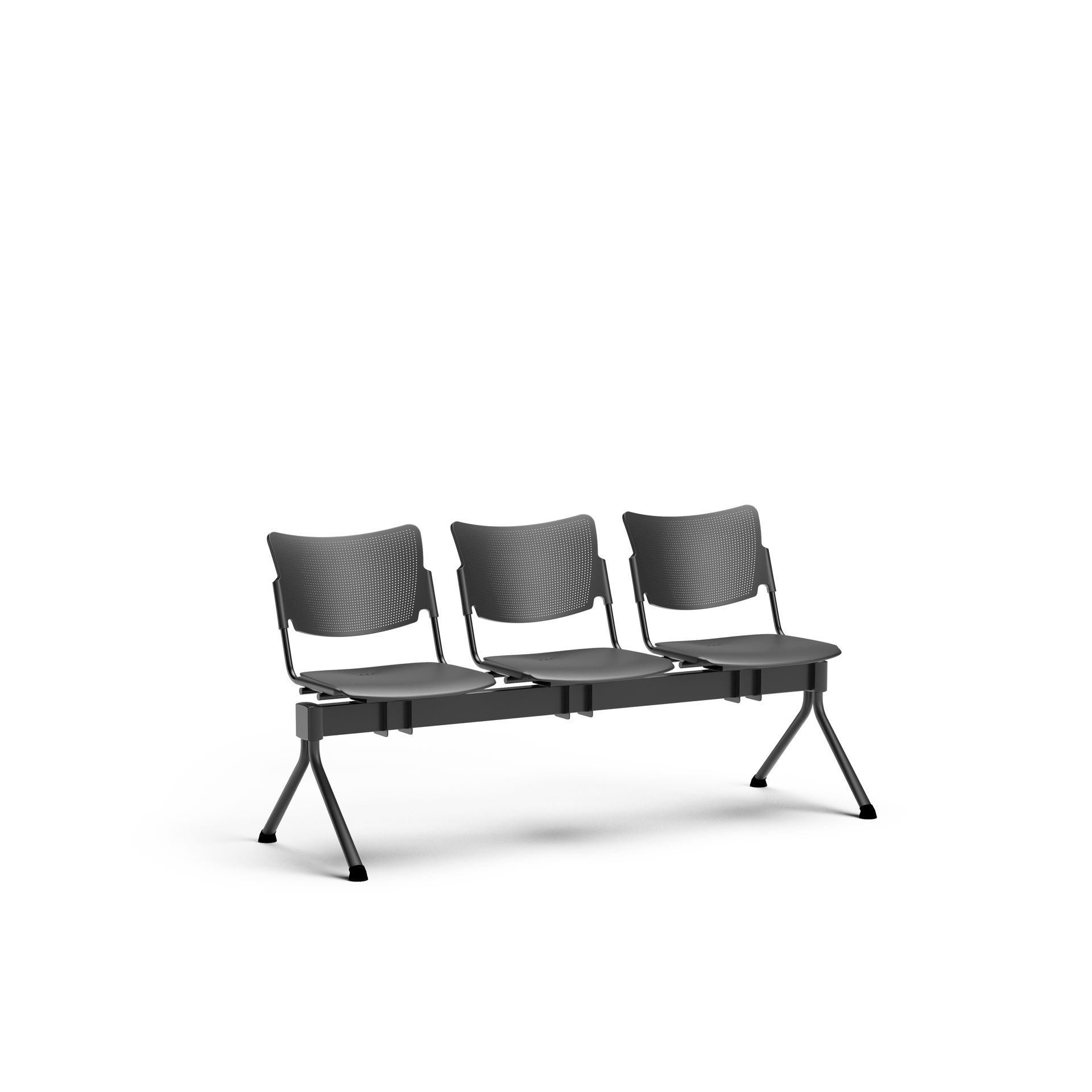

MA1CCCB
Three seats
Breathable plastic back & plastic seat
Black tubular steel frame with silver or chrome legs
Optional arms, table and floor fixings available
| DIMENSIONS | mm |
|---|---|
| Seat Height | 460 |
| Overall Depth | 560 |
| Overall Width | 1610 |
| Overall Height | 810 |
| Back Width | 440 |
| WEIGHT | 21.2 kg |
|---|

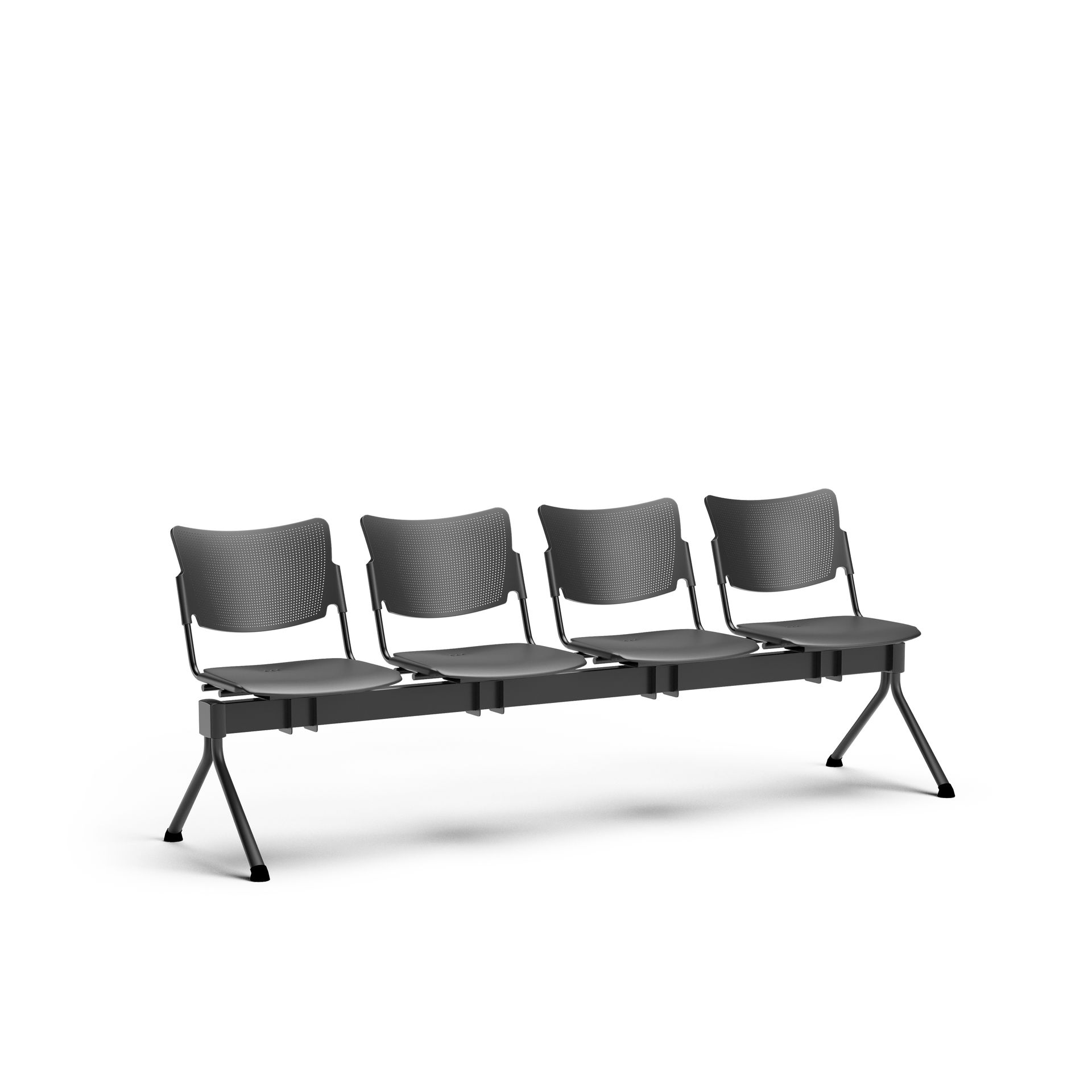

MA1CCCCB
Four seats
Breathable plastic back & plastic seat
Black tubular steel frame with silver or chrome legs
Optional arms, table and floor fixings available
| DIMENSIONS | mm |
|---|---|
| Seat Height | 460 |
| Overall Depth | 560 |
| Overall Width | 2140 |
| Overall Height | 810 |
| Back Width | 440 |
| WEIGHT | 27.4 kg |
|---|

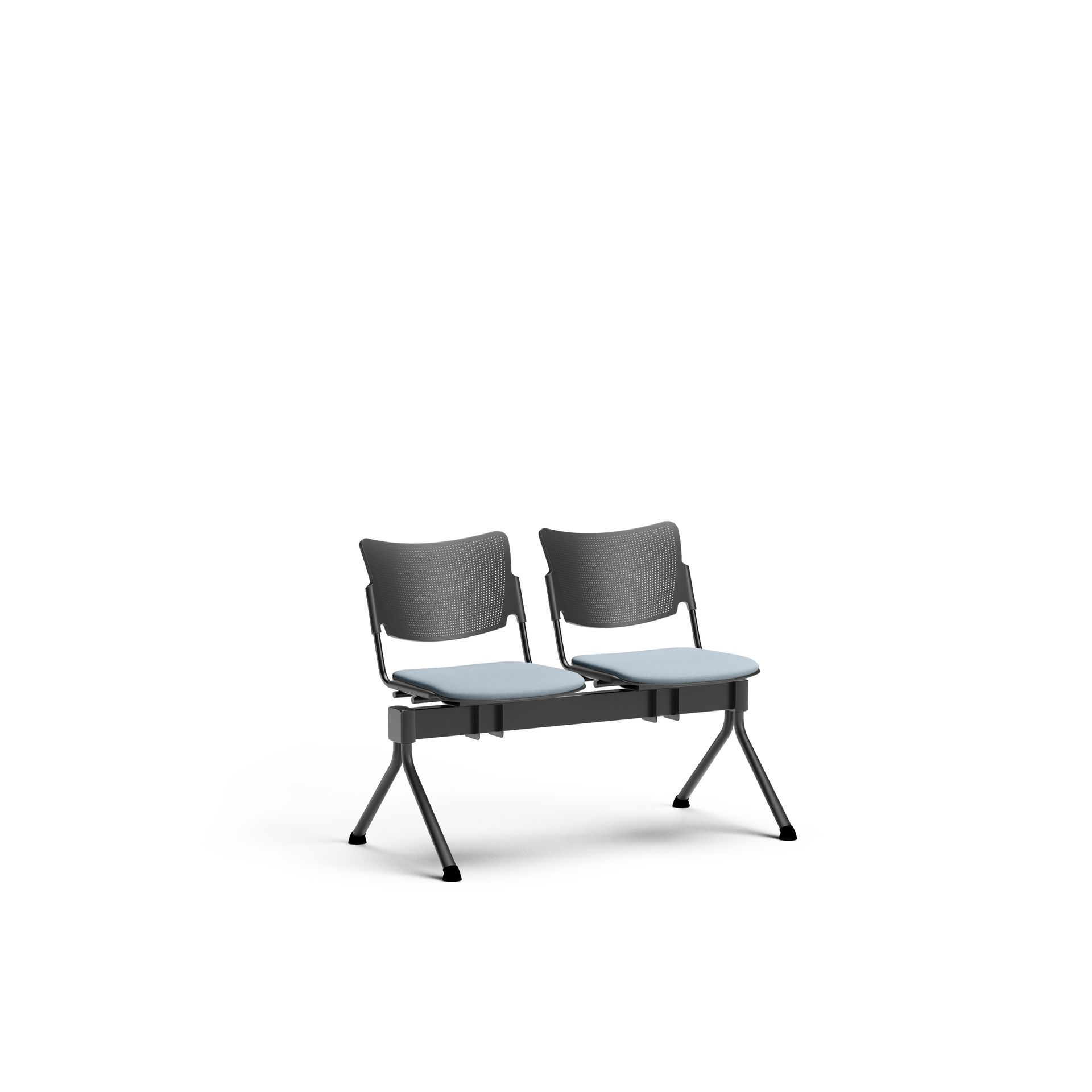

MA3CCB
Two seats
Breathable plastic back & upholstered seat
Black tubular steel frame with silver or chrome legs
Optional arms, table and floor fixings available
| DIMENSIONS | mm |
|---|---|
| Seat Height | 460 |
| Overall Depth | 560 |
| Overall Width | 1100 |
| Overall Height | 810 |
| Back Width | 440 |
| WEIGHT | 16.3 kg |
|---|

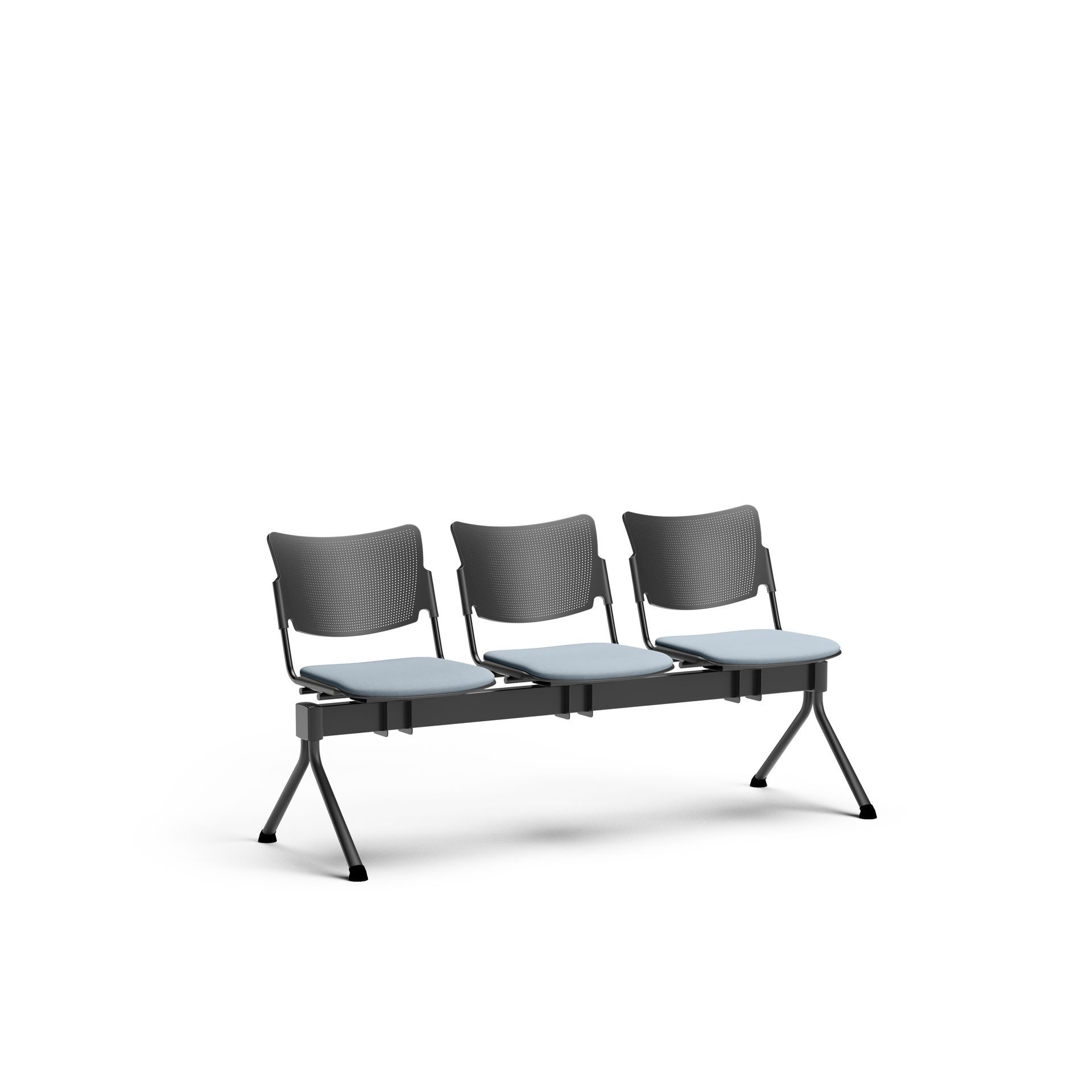

MA3CCCB
Three seats
Breathable plastic back & upholstered seat
Black tubular steel frame with silver or chrome legs
Optional arms, table and floor fixings available
| DIMENSIONS | mm |
|---|---|
| Seat Height | 460 |
| Overall Depth | 560 |
| Overall Width | 1610 |
| Overall Height | 810 |
| Back Width | 440 |
| WEIGHT | 22.2 kg |
|---|

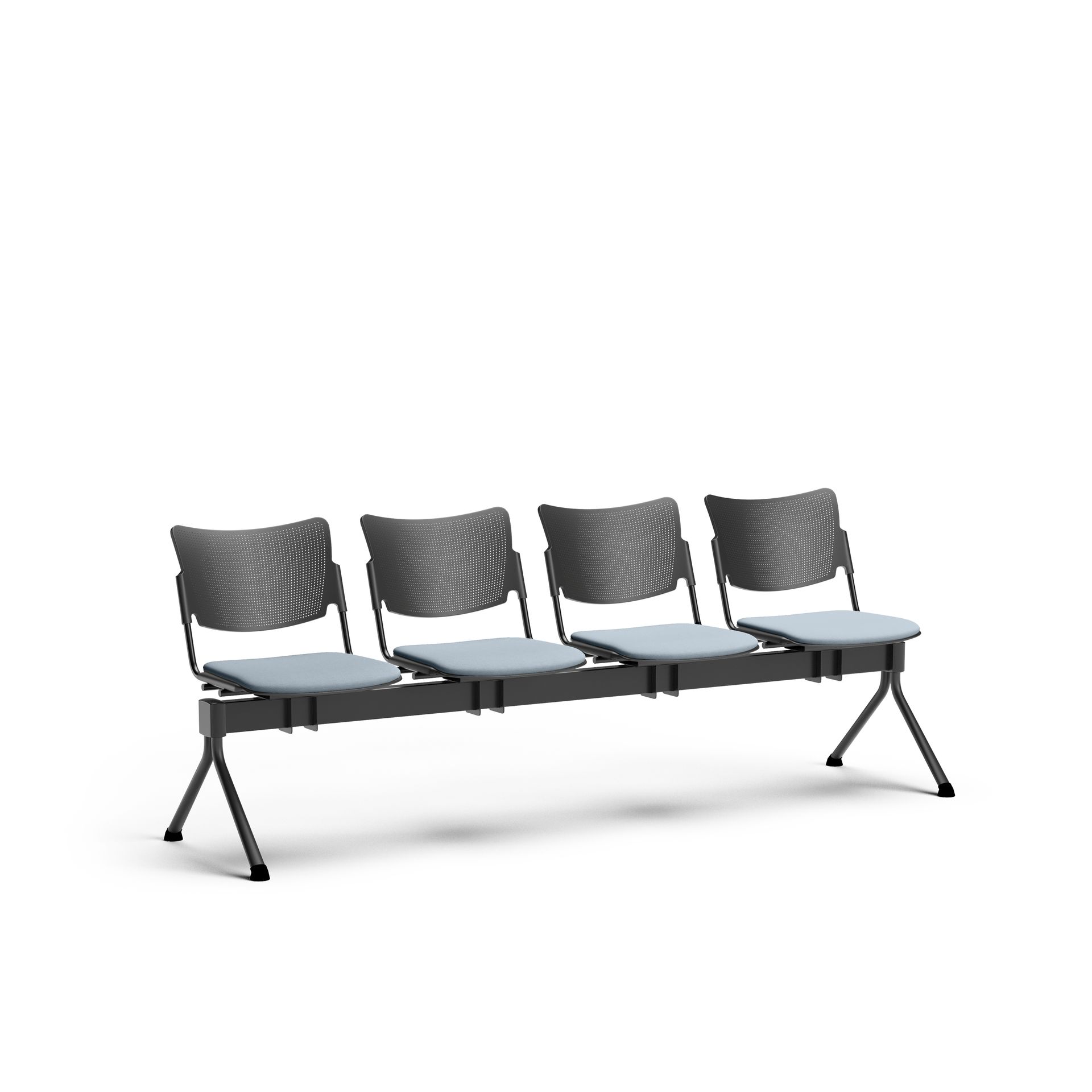

MA3CCCCB
Four seats
Breathable plastic back & upholstered seat
Black tubular steel frame with silver or chrome legs
Optional arms, table and floor fixings available
| DIMENSIONS | mm |
|---|---|
| Seat Height | 460 |
| Overall Depth | 560 |
| Overall Width | 2140 |
| Overall Height | 810 |
| Back Width | 440 |
| WEIGHT | 28.4 kg |
|---|

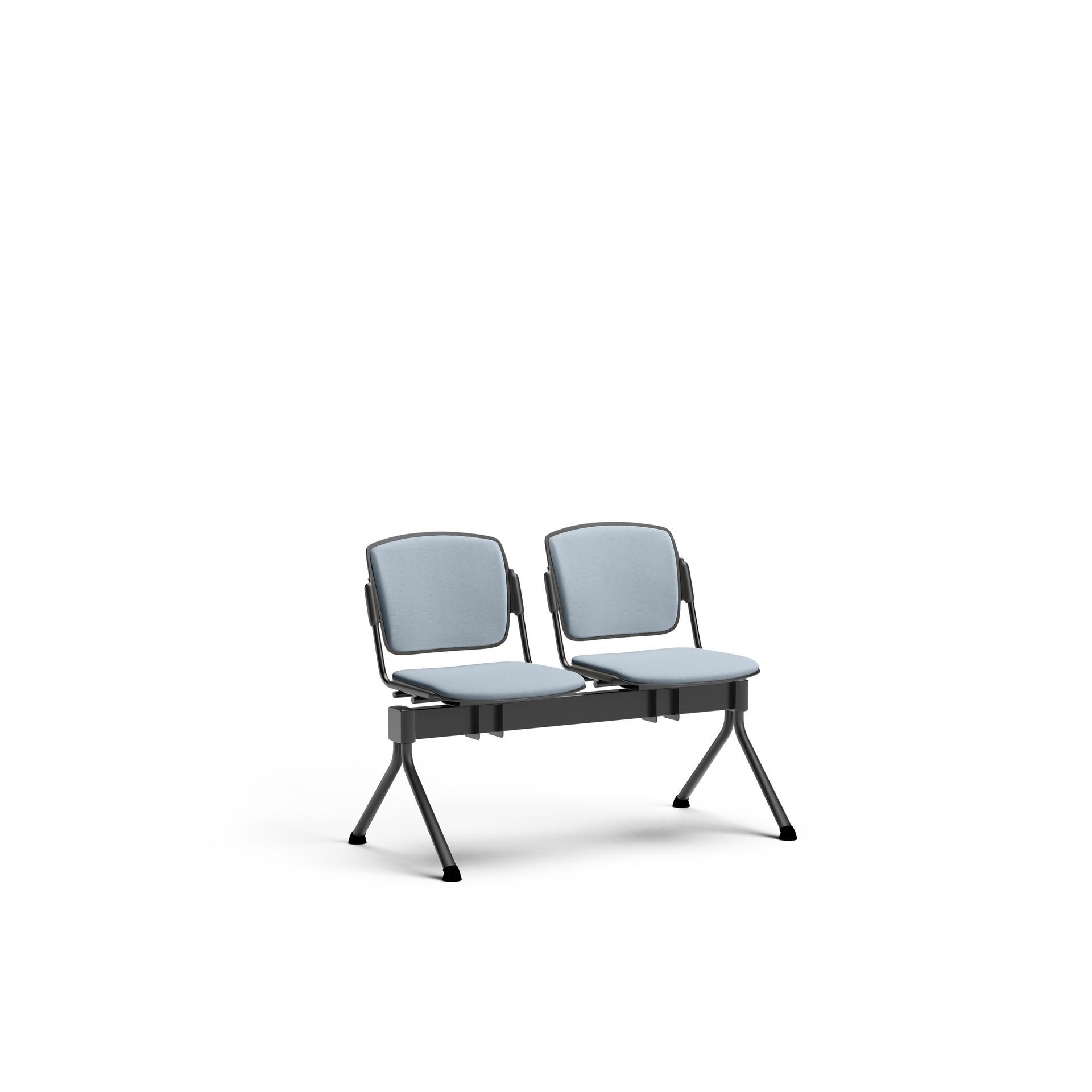

MA5CCB
Two seats
Upholstered seat & back pads
Black tubular steel frame with silver or chrome legs
Optional arms, table and floor fixings available
| DIMENSIONS | mm |
|---|---|
| Seat Height | 480 |
| Overall Depth | 560 |
| Overall Width | 1100 |
| Overall Height | 810 |
| Back Width | 440 |
| WEIGHT | 17.3 kg |
|---|

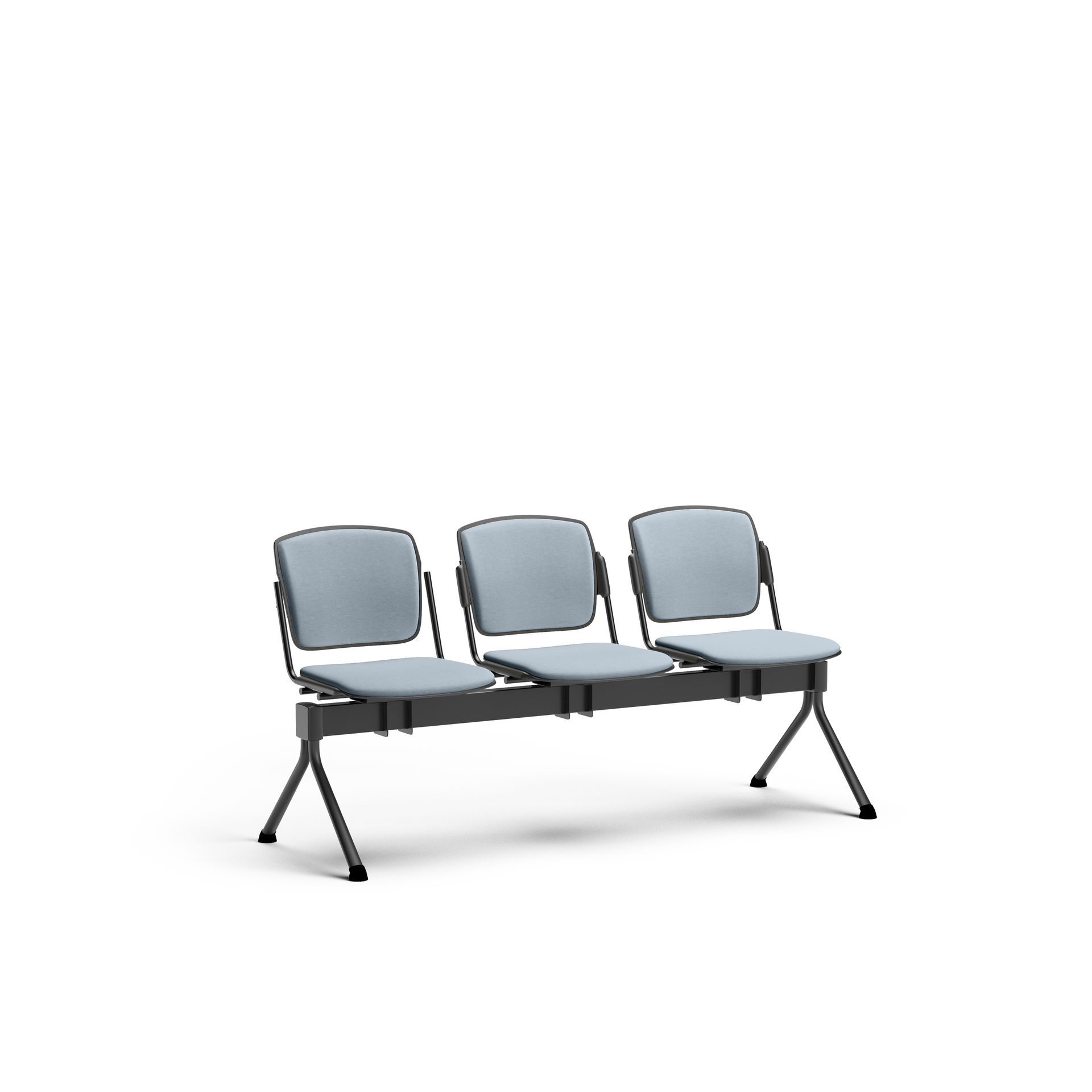

MA5CCCB
Three seats
Upholstered seat & back pads
Black tubular steel frame with silver or chrome legs
Optional arms, table and floor fixings available
| DIMENSIONS | mm |
|---|---|
| Seat Height | 480 |
| Overall Depth | 560 |
| Overall Width | 1610 |
| Overall Height | 810 |
| Back Width | 440 |
| WEIGHT | 23.3 kg |
|---|

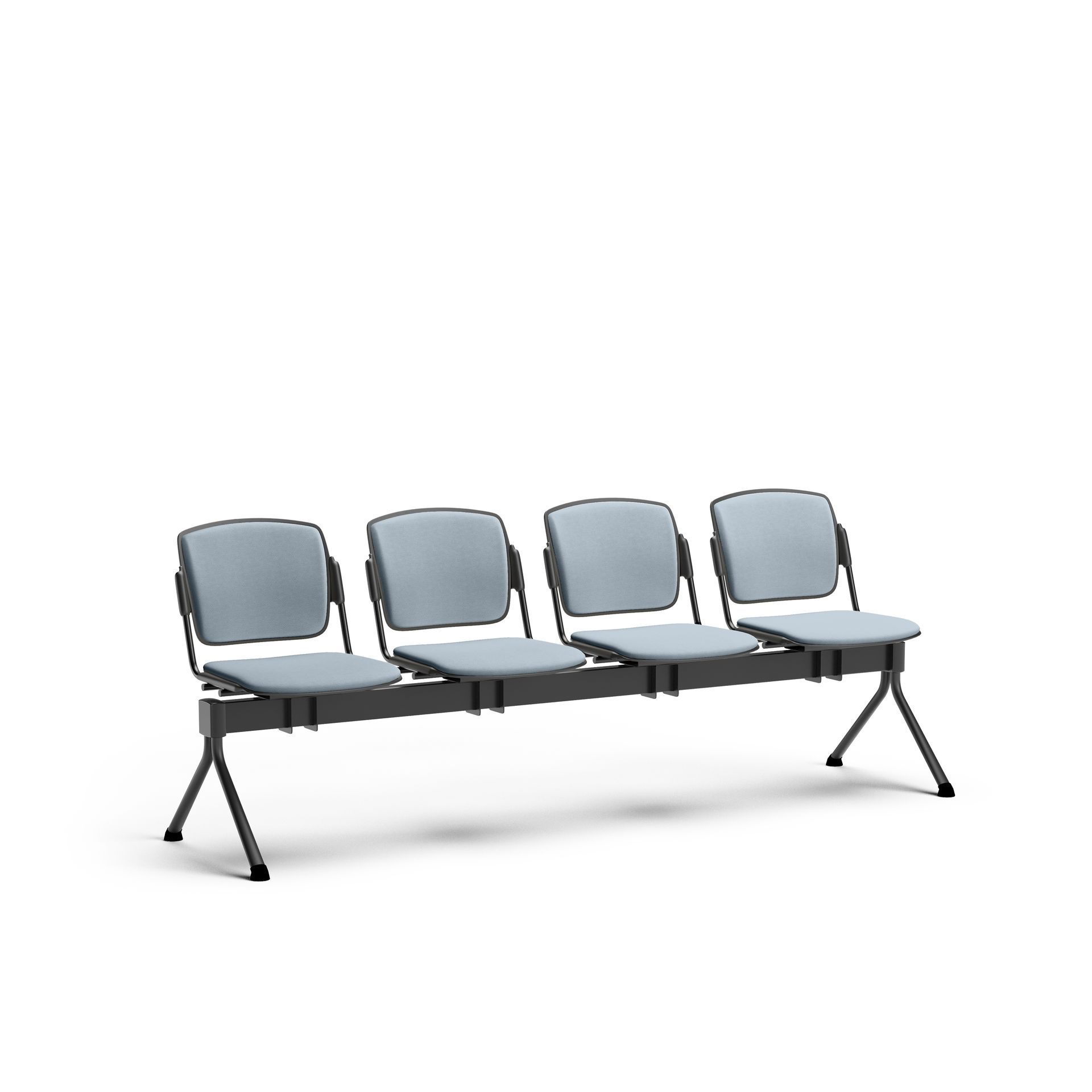

MA5CCCCB
Four seats
Upholstered seat & back pads
Black tubular steel frame with silver or chrome legs
Optional arms, table and floor fixings available
| DIMENSIONS | mm |
|---|---|
| Seat Height | 480 |
| Overall Depth | 560 |
| Overall Width | 2140 |
| Overall Height | 810 |
| Back Width | 440 |
| WEIGHT | 29.4 kg |
|---|
